Advatek PixLite® R4D-S
R4D-S and T8-S Mk3 — the perfect match

When you need to go big, go R4D-S. Designed to bring sizable projects to life, this pixel control receiver works together with the T8-S Mk3 transmitter to drive up to 2,040 RGB pixels for larger-scale installations.

  • Industrial grade fault protection
  • Receives data up to 300+m from PixLite T8-S
  • Din-rail and wall mountable
  • Sleek design with flip lid access to all fuses
  • Compact form
  • Conformal Coating: apply a protective layer to your electronic equipment to enhance durability

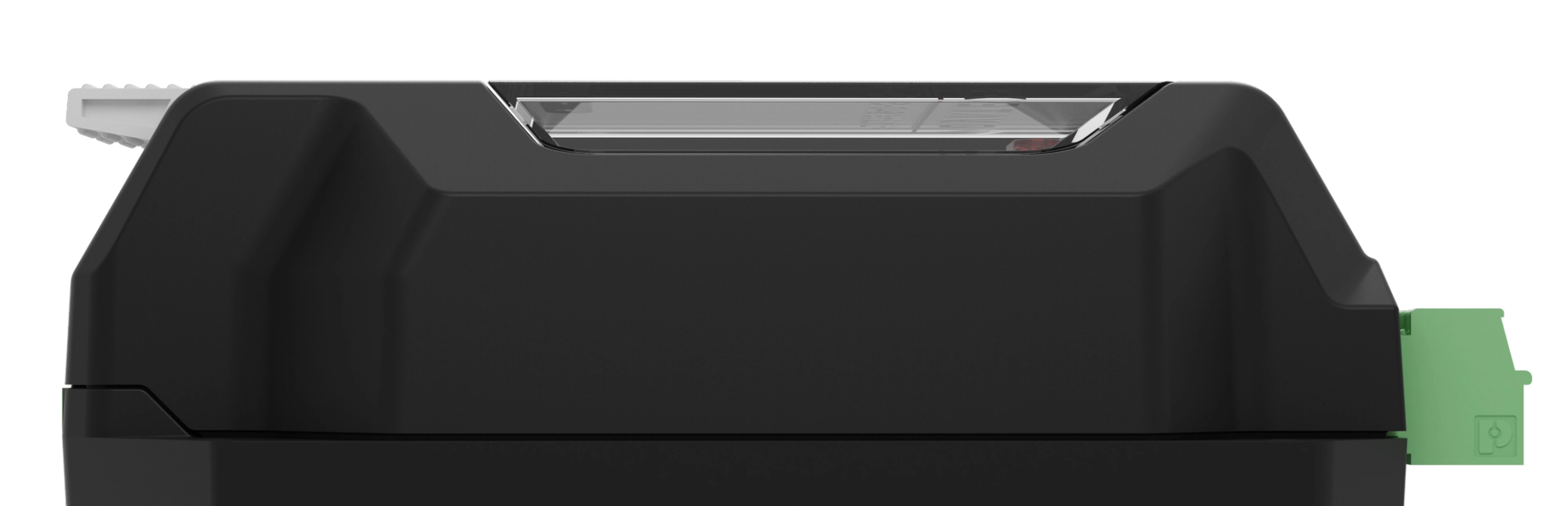

Advatek PixLite® R4D-S Long Range Receiver side view

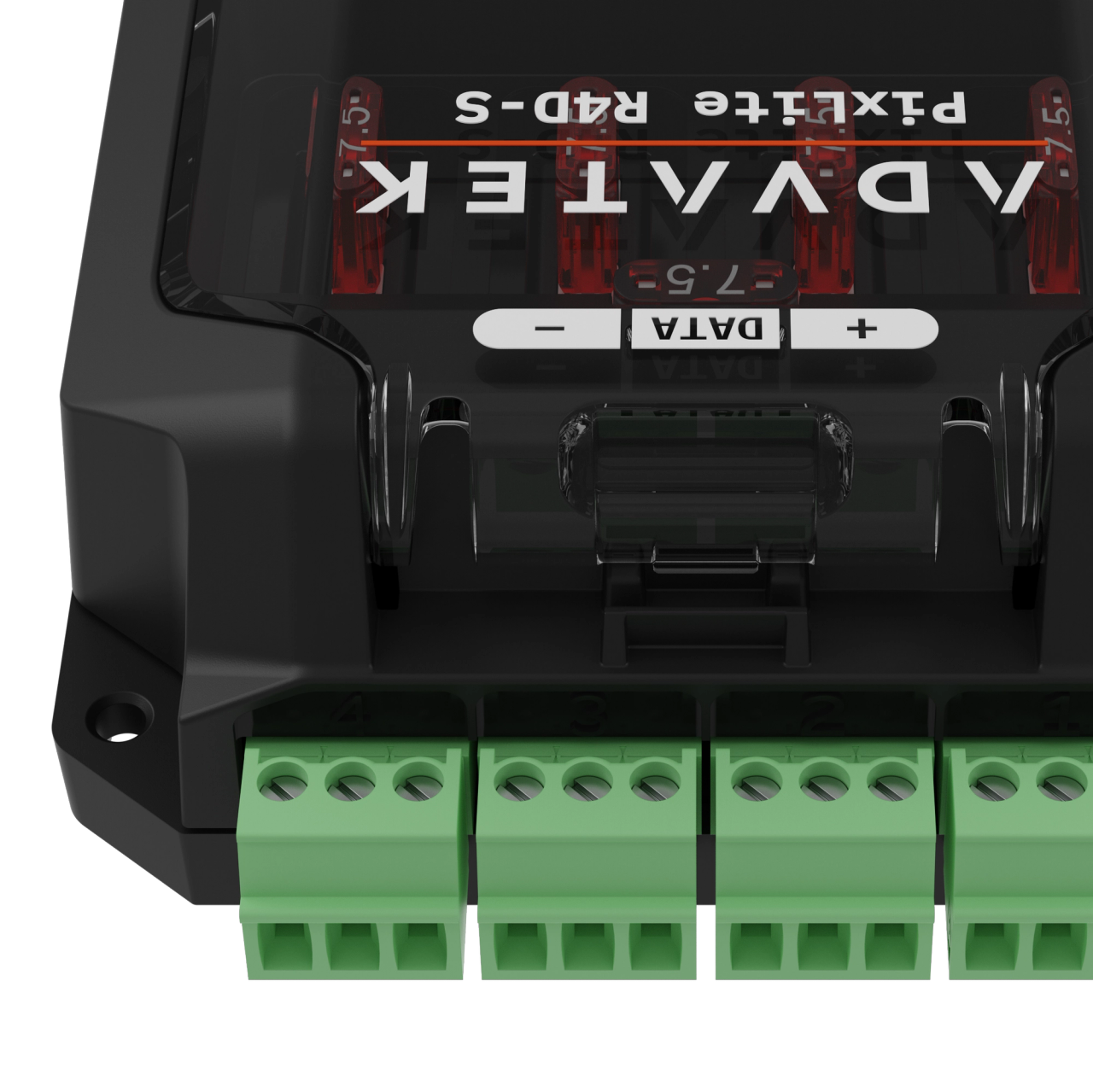

Advatek PixLite® R4D-S Long Range Receiver front closeup view

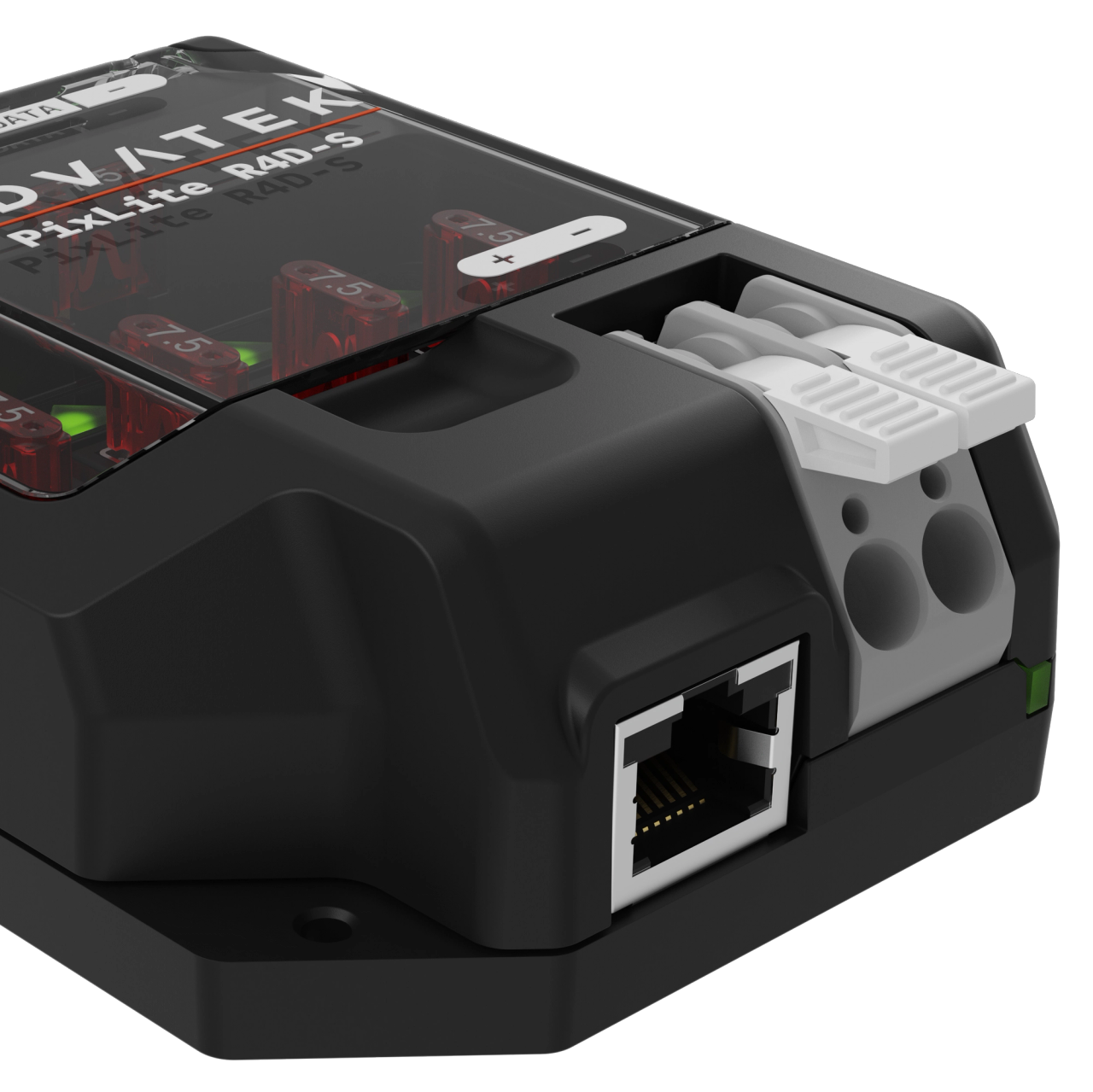

Advatek PixLite® R4D-S Long Range Receiver front angled view

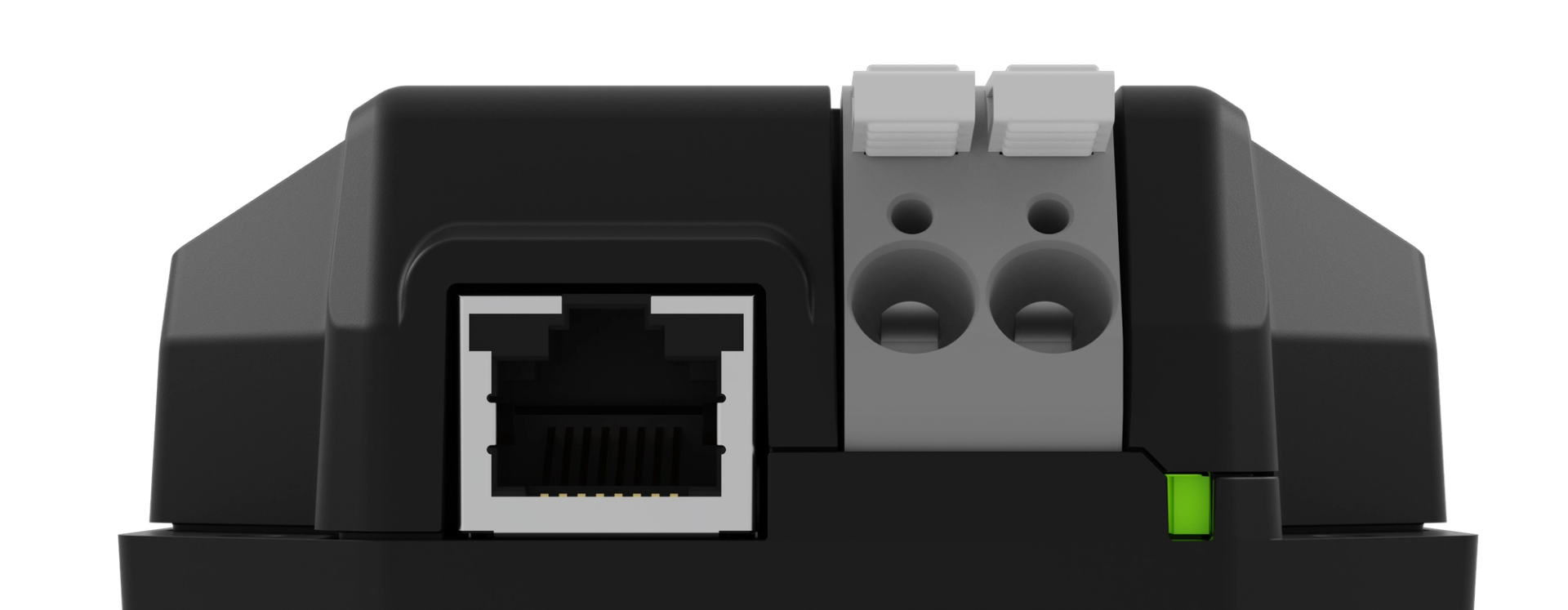

Advatek PixLite® R4D-S Long Range Receiver closeup view

Integrate with T8-S Mk3 for showstopping results

For professionals looking to make that ‘peace of mind’ purchase, it has to be the PixLite® R4D-S. This controller ensures that installing and running complex, long-distance displays is easy — every time.

When used in tandem with the PixLite® T8-S Mk3 controller, the PixLite® R4D-S serves as the receiver of differential pixel data, converting it into a pixel ready signal. A long-distance capability is all you need to open up a broad range of possibilities and make unforgettable displays possible.

The PixLite® R4D-S Receiver features industrial strength fault protection on all inputs and pixel outputs, making it far less prone to failure over time. While short circuit and ESD protection, as well as protection against common DC voltage levels, provides safety for commercial and industrial installations.

Each output also includes a 7.5A mini blade fuse which helps protect the LEDs and power supply, keeping the installation safe. A built-in spare fuse ensures there is always a quick replacement on hand.

Advatek equipment is proudly made in Australia for ultimate manufacturing quality control and is also covered by a new industry leading five-year product warranty for your absolute peace of mind.

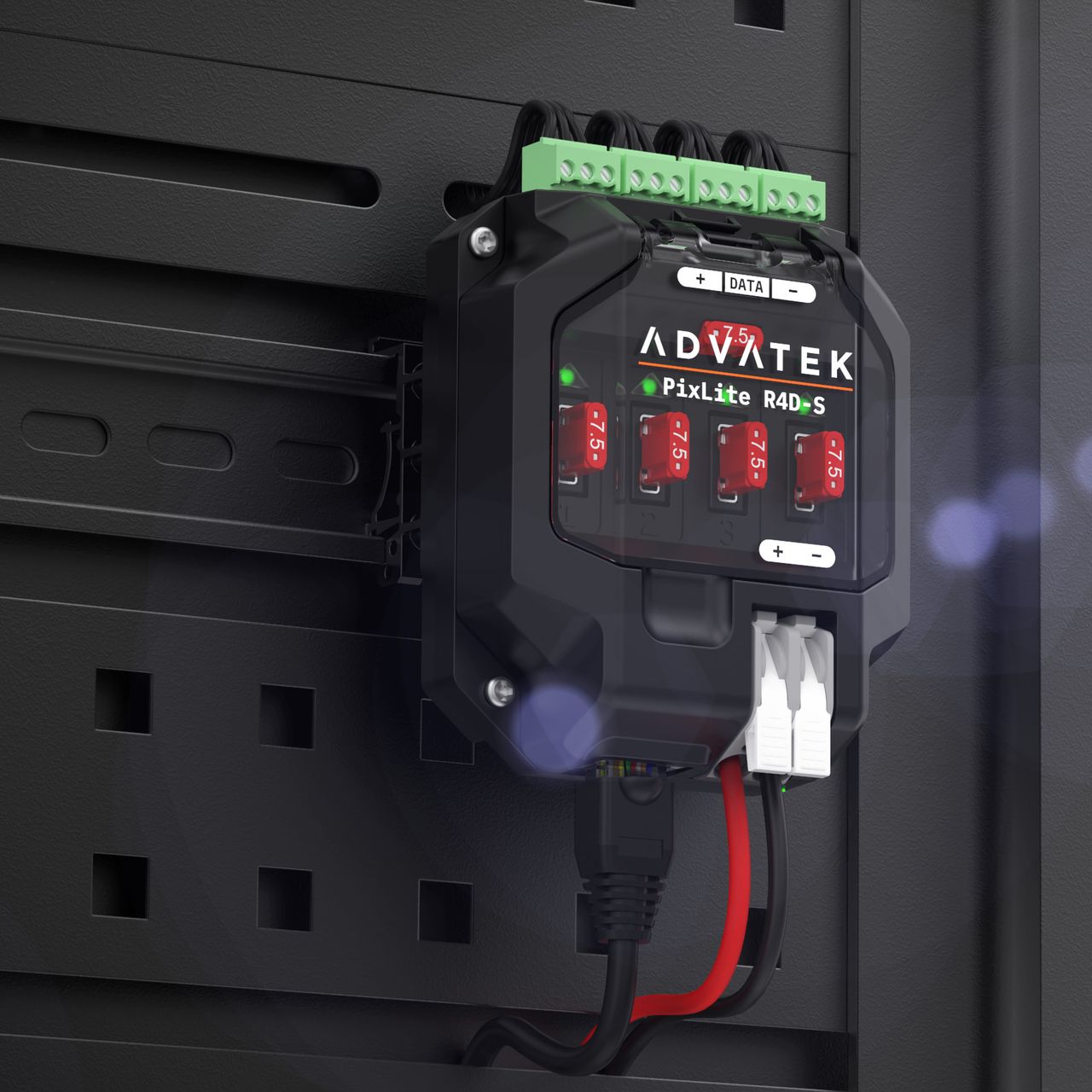

Advatek R4D-S
Advatek R4D-S

Device safety is preserved, thanks to the 7.5A mini-blade fuses on each output. Plus, a built-in spare fuse always ensures a quick replacement on hand

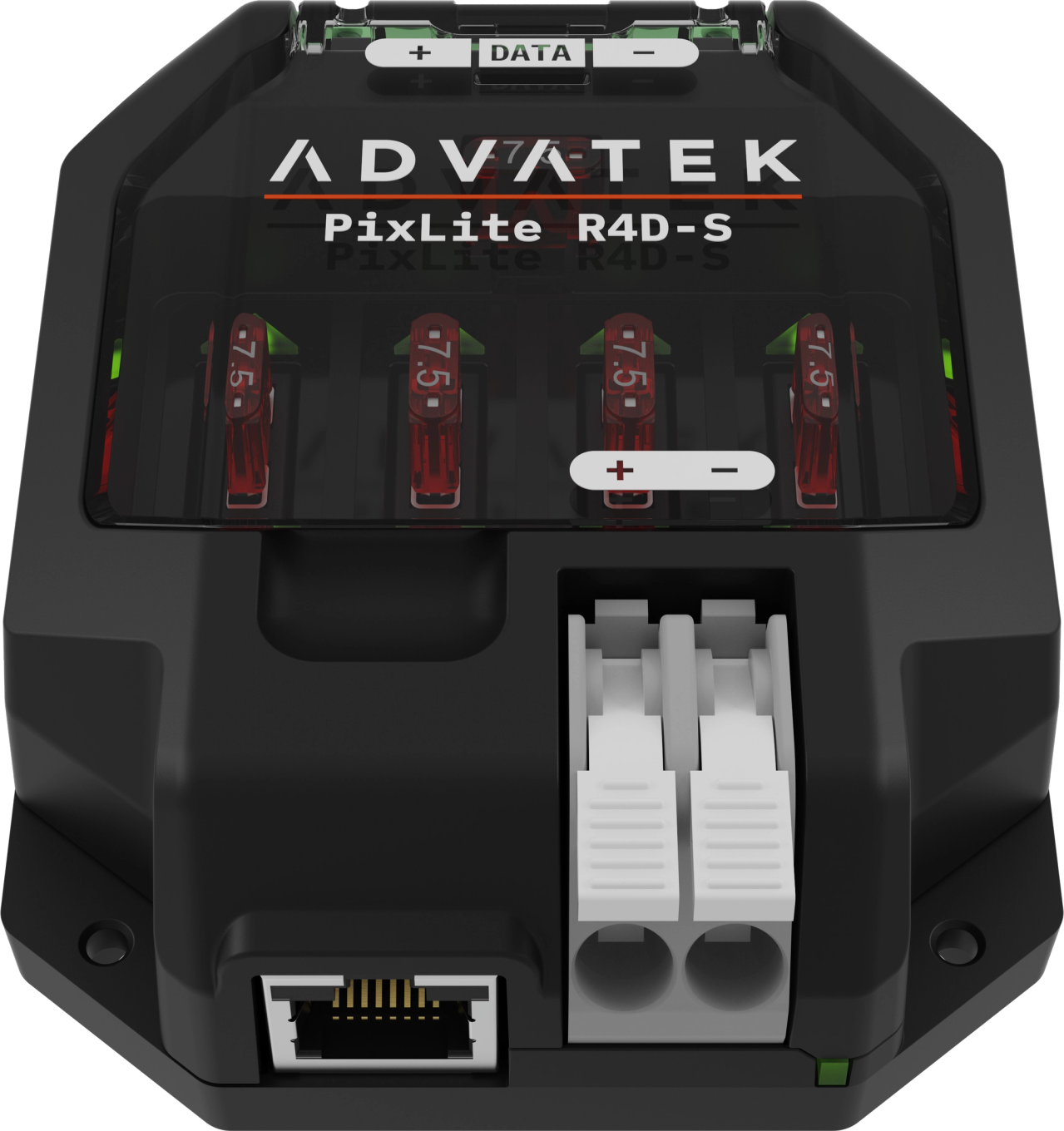

Advatek PixLite® R4D-S front angle
Advatek PixLite® R4D-S front angle

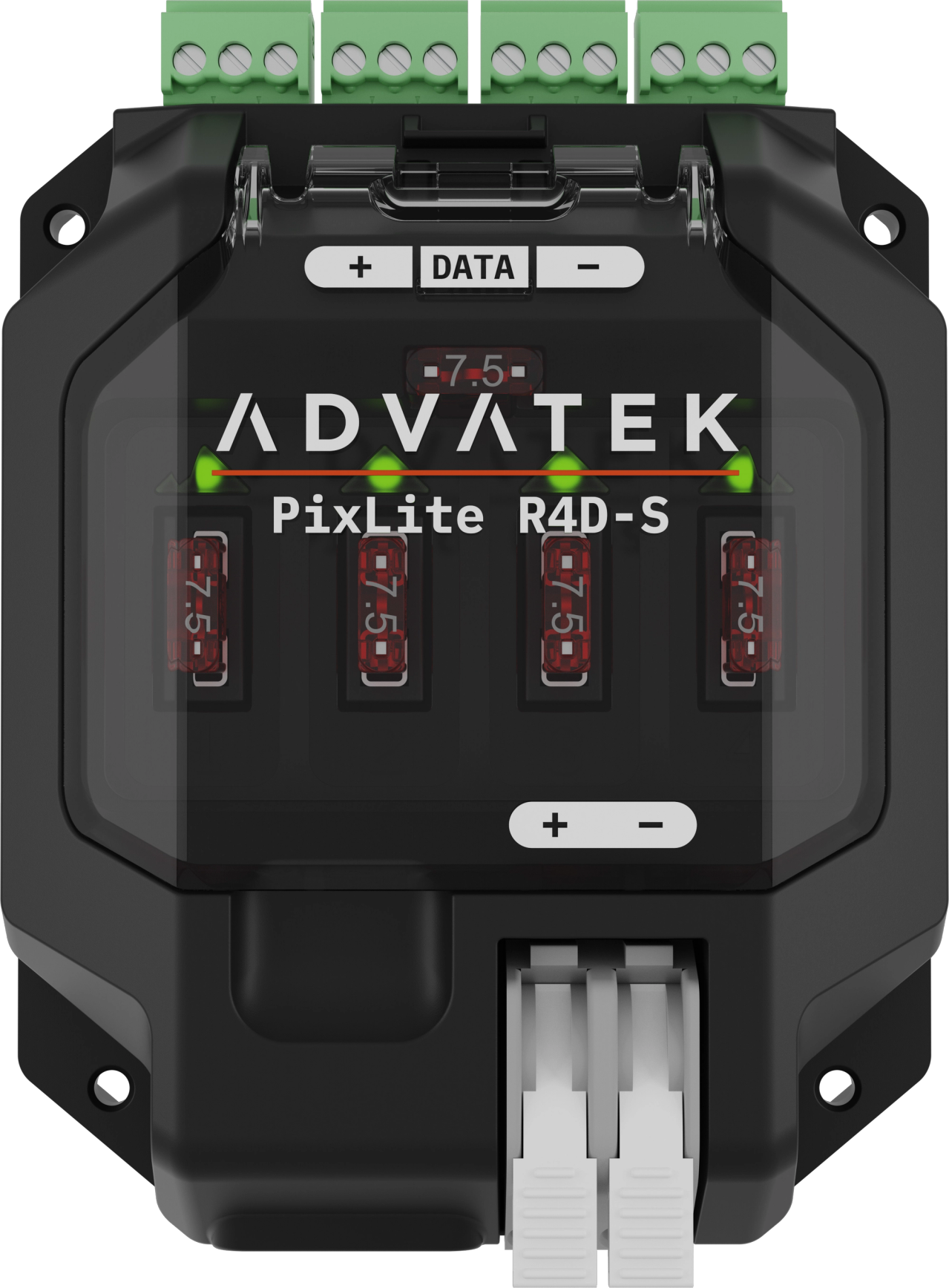

Industrial strength fault protection on all inputs and data outputs. And short circuit, ESD, and common DC voltage level protection.

Specifications

Fused Pixel Outputs

4

Data Inputs (from Transmitter)

1

Dimensions

95 x 78 x 33mm

Weight

0.2kg

Enclosure Material

ABS

Mounting Options

Wall & Din-Rail Mountable

Input Power

5V - 24V DC

Per Output Current Limit

7.5A

Total Current Limit

30A

Ambient Operating Temperature

-20°C to +55°C

Country of Origin

Australia

Compare the PixLite® range

Advatek A4-S Mk3
Advatek E4-S Mk3
Advatek E16-S Mk3
Advatek T8-S Mk3
Advatek T16X-S Mk3
Advatek R2F-S
Advatek R4D-S
Advatek R1F-S

A4-S Mk3

E4-S Mk3

E16-S Mk3

T8-S Mk3

T16X-S Mk3

R2F-S

R4D-S

R1F-S

Pixel Outputs

4

4

16

16 (8 receivers)

16 (16 receivers)

2

4

1

Max RGB pixels per Output

1020

1020

1020

N/A

N/A

1020

510

1020

Powered Pixel Outputs

N/A

N/A

Max RGBW Pixels per Output

768

768

768

N/A

N/A

768

384

768

Expanded Mode Available

Clocked Pixels Supported

SHOWTime™

N/A

N/A

N/A

Record Live Data as Scenes

N/A

N/A

N/A

Create up to 25 Powerful Triggers

N/A

N/A

N/A

Use Scenes to Create Playlists

N/A

N/A

N/A

Playback to Pixel Outputs and/or Aux Port

N/A

N/A

N/A

Live and Programmed Intensity Control

N/A

N/A

N/A

N/A

Input Universes

24

24

96

96

96

N/A

N/A

N/A

sACN & Art-Net Supported

N/A

N/A

N/A

Art-Sync & sACN Sync

N/A

N/A

N/A

Universe Data Hardware Firewall

N/A

N/A

N/A

Monitor Data Source

N/A

N/A

N/A

Advanced Diagnostic Information per Universe

N/A

N/A

N/A

Auto Sync to Data Source Failback

N/A

N/A

N/A

Pixel Processing

Mk3

Mk3

Mk3

Mk3

Mk3

N/A

N/A

N/A

Number of Pixel Protocols Supported

90+

90+

90+

90+

N/A

N/A

N/A

N/A

Extreme Refresh Rates

N/A

N/A

N/A

Continued Support for New Pixel Protocols

N/A

N/A

N/A

Gamma Correction

N/A

N/A

N/A

Dithering

N/A

N/A

N/A

Advanced Mapping Options

N/A

N/A

N/A

Auto Patch

N/A

N/A

N/A

Hold Last Frame on Timeout Option

N/A

N/A

N/A

Auto Synchronization to Data Source

N/A

N/A

N/A

Drop Frame on Overrun Option

N/A

N/A

N/A

Adjustable Clock Speed

N/A

N/A

N/A

Power Management

Extensive

N/A

N/A

Limited

Limited

Smart Electronic Fuses on Pixel Outputs

N/A

N/A

Max Current per Pixel Output

7A

N/A

N/A

N/A

N/A

7.5A

7.5A

10A

Power Input Connector

1x Quick Connect Clamp

1 x Screw Terminal

1 x Screw Terminal

1x IEC

1 x IEC

1 x Quick Connect Clamp

1 x Quick Connect Clamp

1 x Screw Terminal

Pixels can be Powered Through PixLite®

N/A

N/A

Pixel Output Current Measurement

N/A

N/A

N/A

Device Monitoring

Extensive

Extensive

Extensive

Extensive

Extensive

N/A

N/A

N/A

Frame Rate Monitoring

N/A

N/A

N/A

Output Current Monitoring

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Temperature Monitoring

N/A

N/A

N/A

Min & Max Temperature Monitoring

N/A

N/A

N/A

Input Voltage Monitoring

N/A

N/A

N/A

N/A

N/A

N/A

N/A

View Physical / Digital Version Info

Extensive

Extensive

Extensive

Extensive

Extensive

N/A

N/A

N/A

Ethernet Monitoring

N/A

N/A

N/A

Per-Universe Packet Monitoring

N/A

N/A

N/A

Sync Status

N/A

N/A

N/A

Discovery and Management

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

N/A

N/A

N/A

Dynamic Web Browser Management Interface

N/A

N/A

N/A

Import / Export Configuration

N/A

N/A

N/A

Discovery / Recovery Protocol

Advanced

Advanced

Advanced

Advanced

Advanced

N/A

N/A

N/A

HTTP API

N/A

N/A

N/A

WebSocket API

N/A

N/A

N/A

VLANs and VPNs Supported

N/A

N/A

N/A

Device Name for Easy Identification

N/A

N/A

N/A

Ethernet Ports

Dual

Single

Single

Dual

Dual

N/A

N/A

N/A

Ethernet Speed

Gigabit

10/100 Mbps

10/100 Mbps

Gigabit

Gigabit

N/A

N/A

N/A

DHCP Addressing

N/A

N/A

N/A

Static IP Addressing

N/A

N/A

N/A

AutoIP Addressing

N/A

N/A

N/A

Aux Port

N/A

N/A

N/A

DMX512 Input

N/A

N/A

N/A

DMX512 Output

N/A

N/A

N/A

Hold Last Frame on Timeout Option

N/A

N/A

N/A

Auto Synchronization to Data Source

N/A

N/A

N/A

Drop Frame on Overrun Option

N/A

N/A

N/A

Mounting Options

19" Data Rack Mount

DIN Rail Mount

Flat Surface Mount

Certifications

ETL Listing (UL)

RoHS

UKCA

CE

RCM

FCC

ICES3

Fault Protection

ESD Protection on all I/O

Pixel Output Power – Over Current & Short Circuit Protection

Smart Electronic Fuses

N/A

N/A

N/A

N/A

Removable Fuses

Removable Fuses

Reverse Polarity Protection on Power Input

N/A

N/A

Aux Port Fault Protection

N/A

N/A

N/A

Pixel Output Clock/Data Fault Protection

Learn more
Learn more
Learn more
Learn more
Learn more
Learn more
Learn more

Related Products



Mk3

PixLite® T8-S Mk3

T8-S Mk3
Long Range

With a data transmission range of 300 meters, this user-friendly long range pixel controller system is the high-impact solution for professional installations.

PixLite® R2F-S

R2F-S
Long Range

The R2F-S has two outputs, connecting to two runs of pixels and the long-range potential allows receivers to be located up to 300 meters away from the transmitter.
