Overview
This pixel protocol was designed by World Semi in China. WS2813 offers many of the benefits the WS28xx series is famous for, as well as being the first in the series to offer both a redundant data line and a much higher PWM rate, making it one of the most common protocols for pixel lighting displays. There are multiple variants of WS2813, including A, B, C and D. These variants offer different brightness levels so that all budgets are met. The control circuit and LEDs are integrated in a 5050 SMD package, which provides a small physical footprint for each pixel.

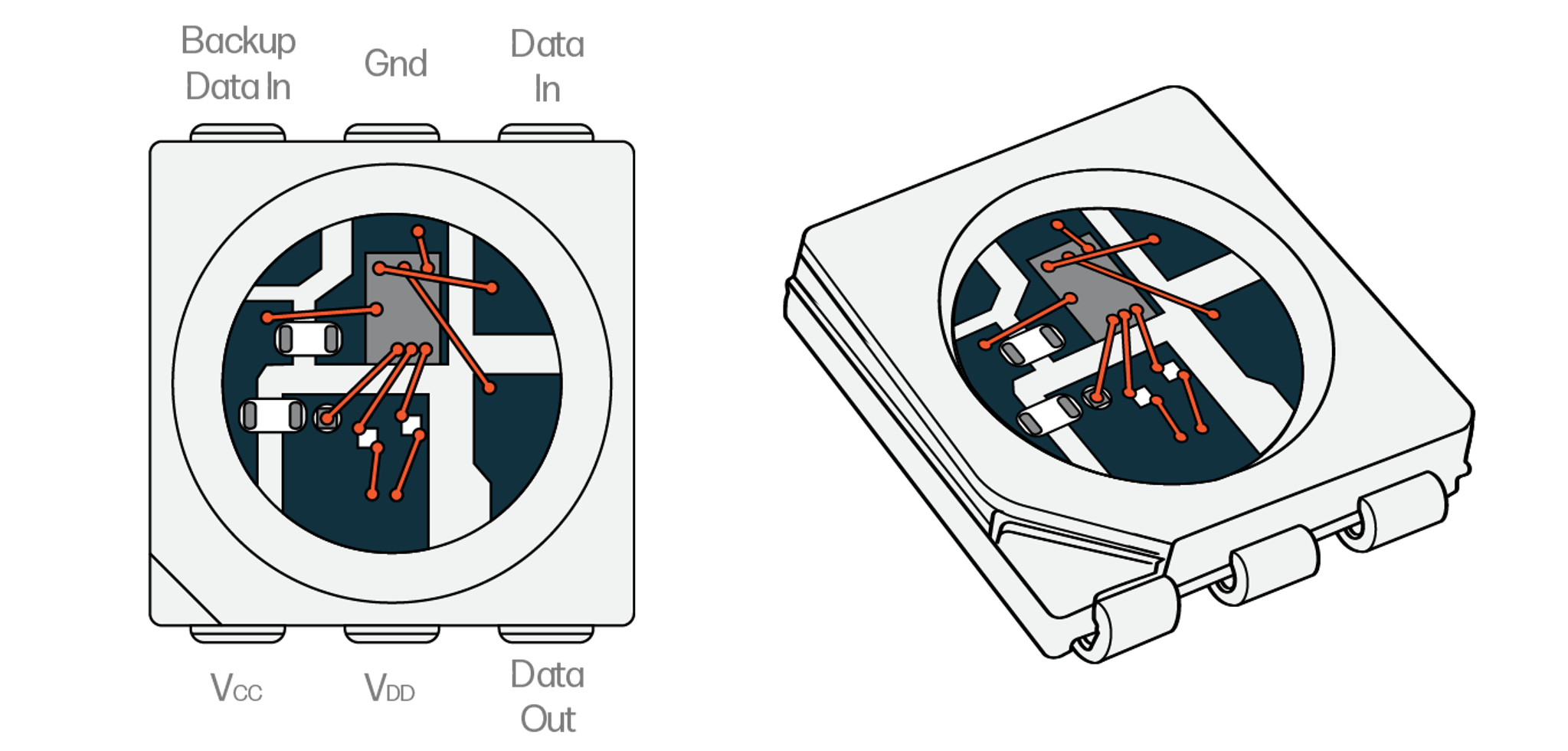

WS2813 pixel protocol
Note: Advatek Lighting is in no way affiliated with World Semi.
Specifications
PixLite Mk1 | |
PixLite Mk2 | |
PixLite Mk3 | |
Clock Type | Data-Only |
Color Resolution | 8 Bits |
Current Control | |
Physical Package | SMD5050 with integrated LEDs |
RGB | |
RBGW | |
Input Voltage | 5V |
Output Pixel Voltage | 5 - 12V |
PWM Rate | 2000Hz |
Suitable Camera | Up to 67fps |
Data Transfer Rate | 800kbps |
Redundant Data Line |
Colors
Color | Brightness (A) | Brightness (B) | Brightness (C) | Brightness (D) | Wavelength |
|---|---|---|---|---|---|
Red | 480 mcd | 360 mcd | 120 mcd | 100 mcd | 620 – 622 nm |
Green | 1500 mcd | 1150 mcd | 540 mcd | 420 mcd | 522 – 525 nm |
Blue | 320 mcd | 220 mcd | 130 mcd | 110 mcd | 467 – 470 nm |
Considerations for Use
Advantages
- Up to 12V, allowing for long cable lengths
- High PWM rate allows for filming these pixels with cameras up to 67fps
- Redundant data line reduces chance of entire strip failure
Disadvantages
- Data-only restricts refresh rates to be limited by the speed of the protocol, which can be slow
- Only 8 bits of data for each color makes dimming curves less smooth
