Overview
Very similar to HD108, NS108E offers all the same features, but at a slightly lower PWM rate. The control circuit and LEDs are integrated in a 5050 SMD package, which provides a small physical footprint for each pixel.
Current Control
NS108E has the ability to digitally control the current of the connected LEDs. Use the 5-bit current control per color to lower the brightness without sacrificing resolution, and tune the current of individual colors, allowing for more accurate color mixing. This individual current control can be set when configuring your PixLite Mk3 controller.

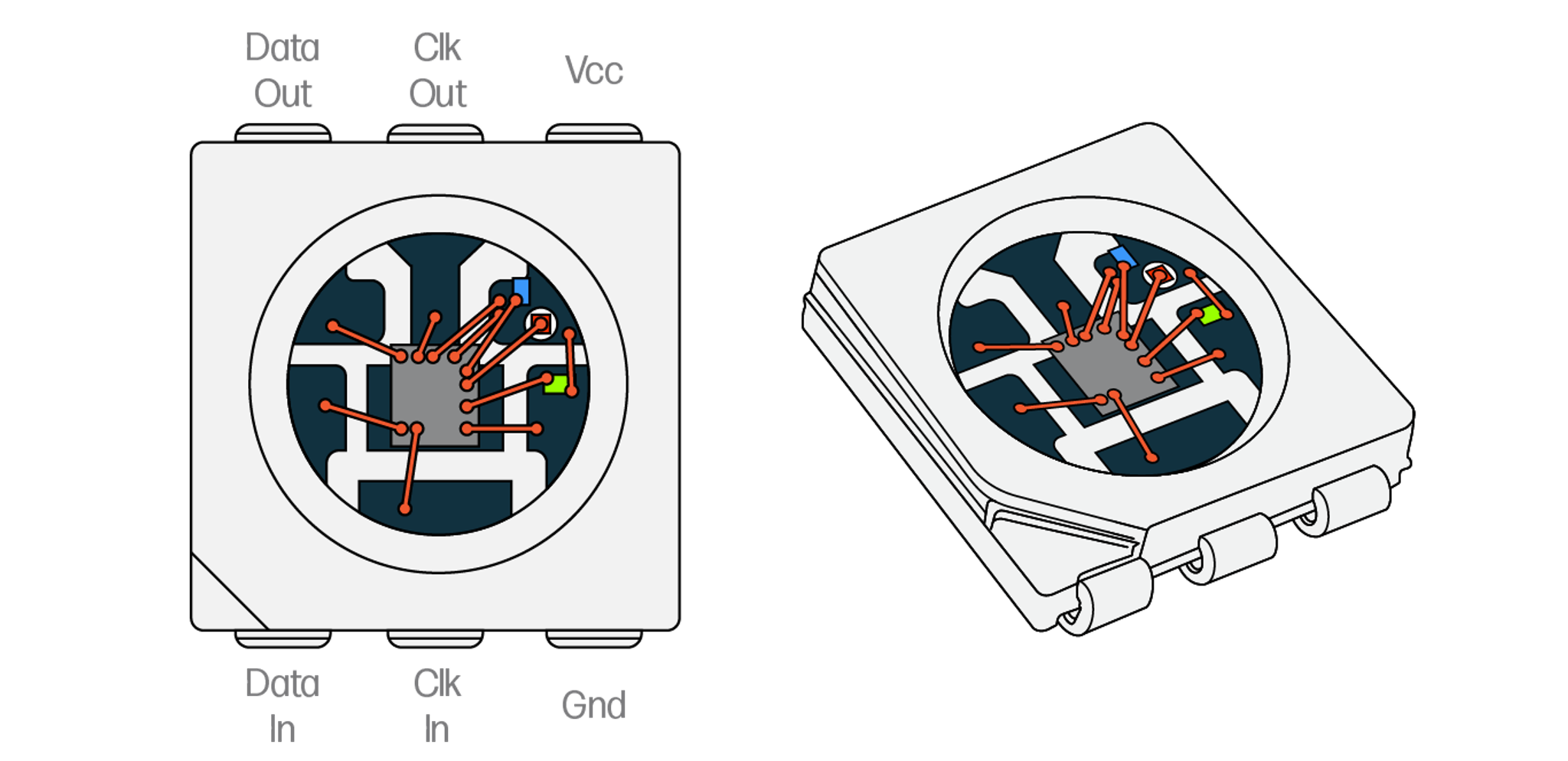

NS108E pixel protocol
Specifications
PixLite Mk1 | |
PixLite Mk2 | |
PixLite Mk3 | |
Clock Type | Clocked |
Color Resolution | 16 Bits |
Current Control | Per Color: 5 Bits |
Physical Package | SMD5050 with integrated LEDs |
RGB | |
RBGW | |
Input Voltage | 5V |
Output Pixel Voltage | 5V |
PWM Rate | 4000Hz |
Suitable Camera | Up to 134fps |
Data Transfer Rate | N/A |
Redundant Data Line |
Colors
Color | Brightness | Wavelength |
|---|---|---|
Red | 400 – 700 mcd | 620 – 630 nm |
Green | 1000 – 1500 mcd | 515 – 530 nm |
Blue | 200 – 400 mcd | 460 – 475 nm |
Considerations for Use
Advantages
- Presence of a clock allows for faster refresh rates
- High PWM rate allows for filming these pixels with cameras up to 134fps
- 16 bits of data for each color makes dimming curves very smooth
Disadvantages
- Limited to 5V, causing short cable lengths
- No redundancy in data
